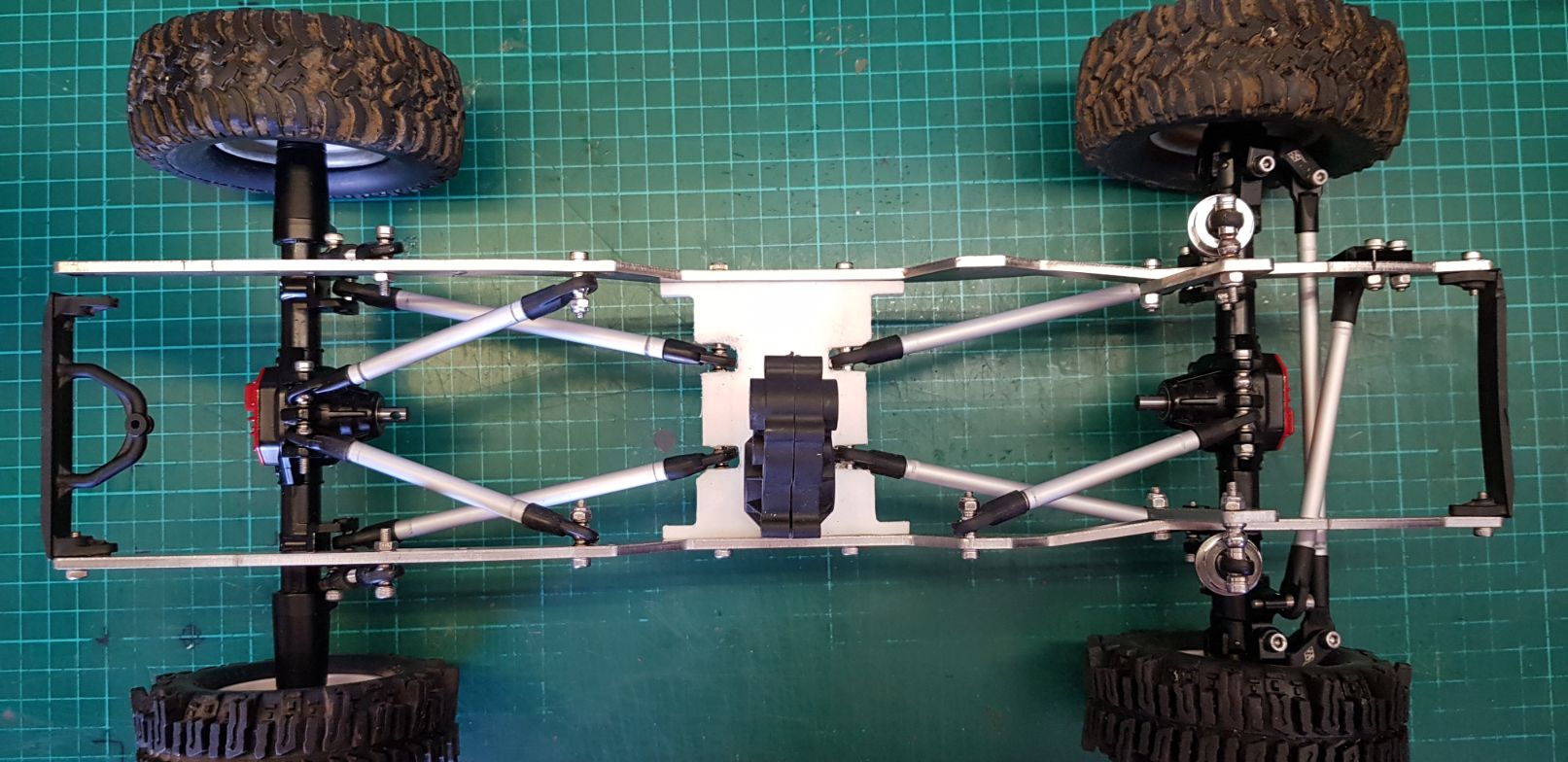

Top view of the chassis setup so far

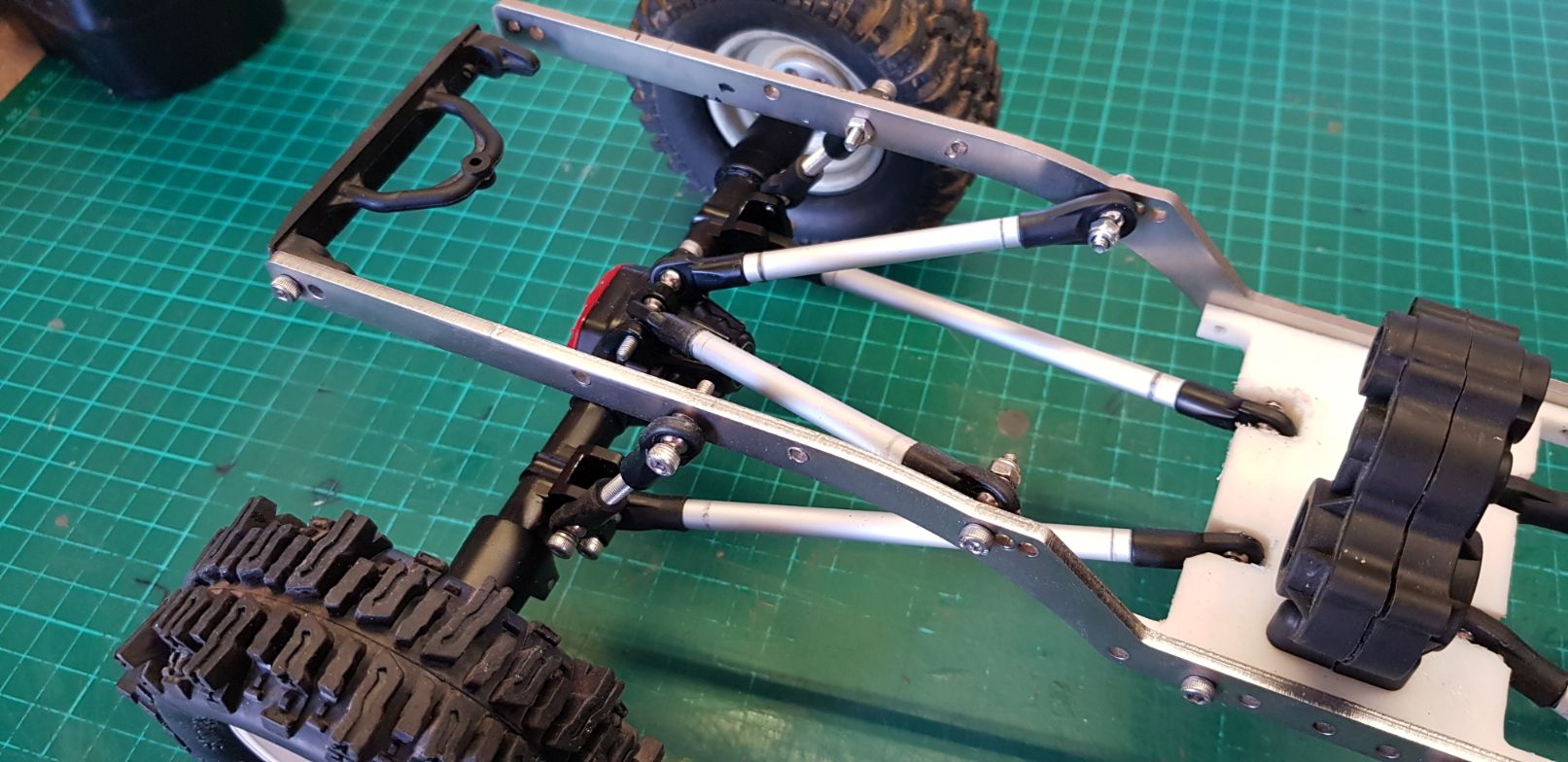

Here is the 4 link setup at the rear. This will not have shock towers so I will be using a cantilever suspension setup.

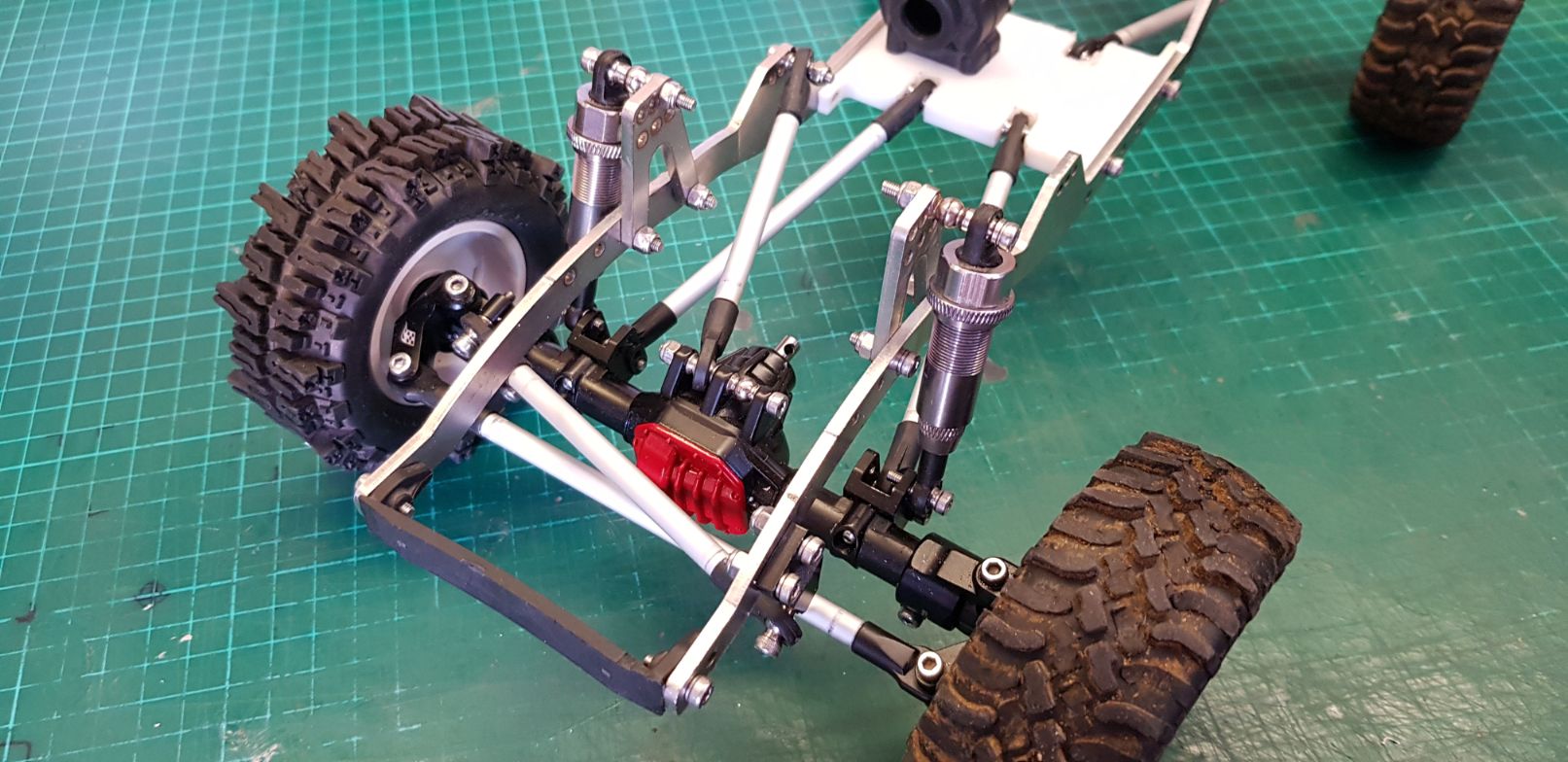

This is the front suspension setup. It's a 3 link setup with panhard road. Shocks shown are just mockup shocks.
Side view of the rolling chassis.
And finally, here is the side view of the rolling chassis with the body just placed on top of the chassis.
Slow progress but getting there
More when I have more to share |
